ESP32 Development Board - ESP32-C3 CORE-ESP32-C3 CH343P

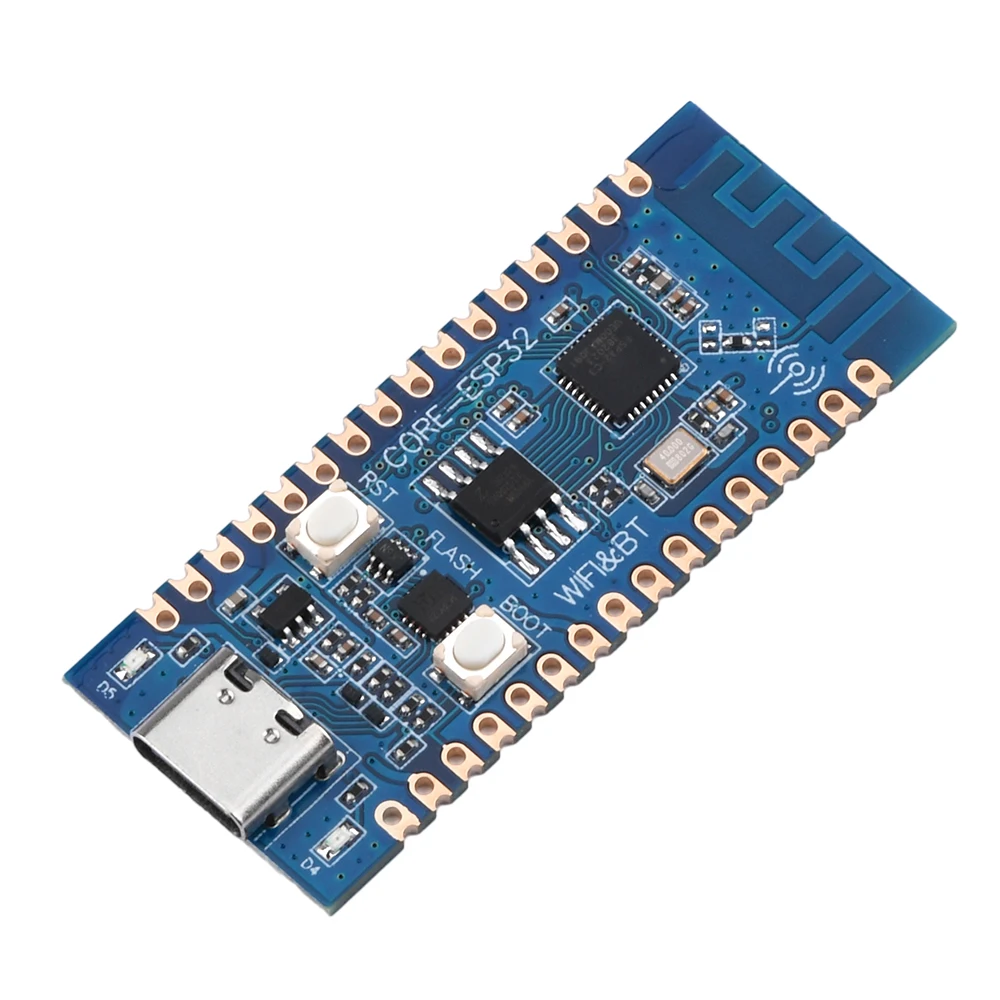

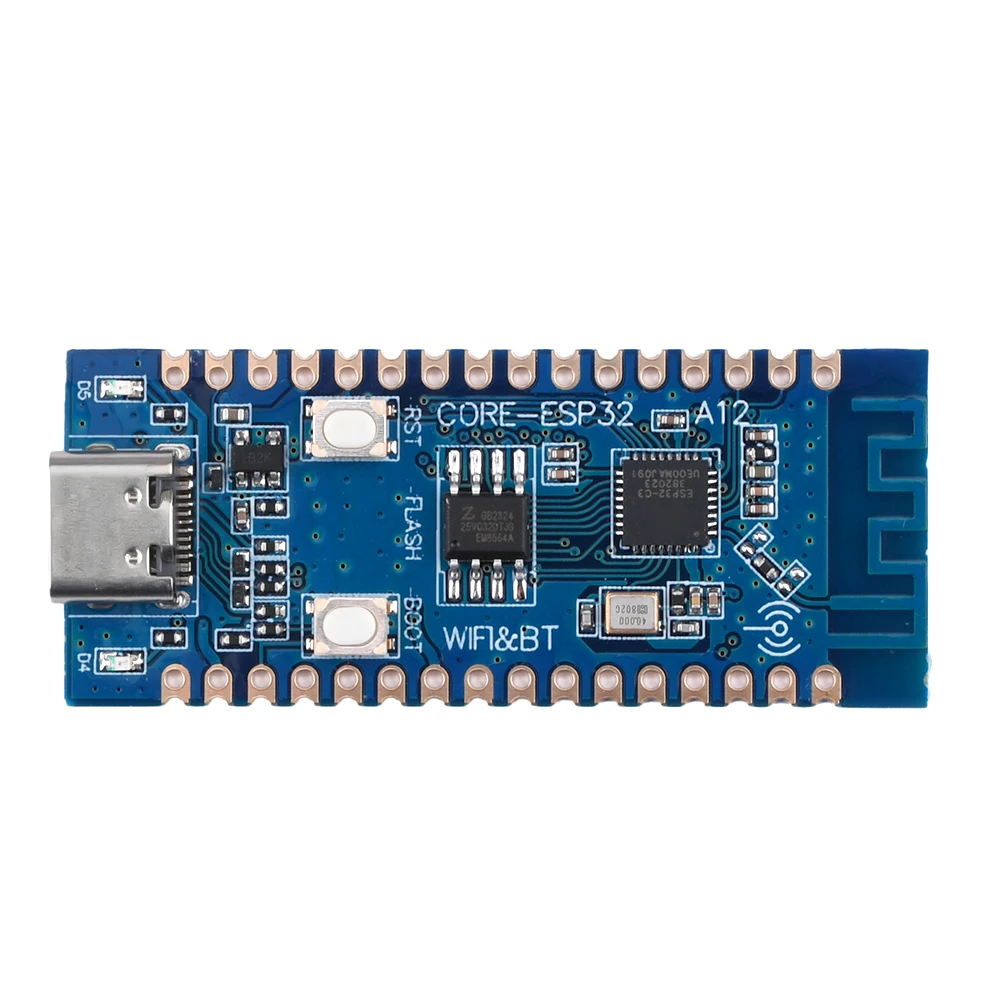

📦 The ESP32-C3 CORE-ESP32-C3 CH343P is an innovative and compact development board designed for versatile IoT applications, featuring integrated WiFi and Bluetooth capabilities. Measuring just 21mm x 51mm, this core board offers an efficient footprint without sacrificing functionality, making it an excellent choice for embedded projects.
🔧 Key Features:
- Compact Design: The dimensions of 21mm x 51mm make it an ideal fit for space-constrained projects.
- Convenient Stamp Hole Design: The edges of the board feature stamp holes, allowing developers to easily mount the board in various configurations and facilitate prototyping.
- Rich Interface Support: It provides a variety of interfaces including UART, GPIO, SPI, I2C, ADC, and PWM, enabling flexible integration and application development based on specific project requirements.
- Minimalist Version for Mass Production: Tailored for production needs, the minimalist version streamlines the design process. For personal development or debugging scenarios, a classic version with enhanced compatibility is recommended.
- Diverse Development Methods: The ESP32-C3 supports various development approaches, providing the flexibility needed for different programming environments and project scopes.
📦 Model Comparisons:
- Minimalist Style: Lacks a serial port chip and does not support IDE debugging, making it more suited for straightforward applications.
- Classic Style: Equipped with a serial port chip for enhanced connectivity and IDE debugging support, ideal for more complex development tasks.
⚪ Specifications:
- Microcontroller: CORE-ESP32-C3 with a main frequency of 160MHz
- Onboard Flash: 4MB
- CH343P Chip: Supports USB connectivity
- UART Interfaces: 2 (UART0 & UART1)
- ADC: 12-bit resolution, 2 channels with a max sampling rate of 100KSPS
- Low-speed SPI Interface: 1 channel, supporting master mode
- I2C Controller: 1 channel
- PWM Channels: 4
- GPIO Pins: 15 reusable external pins
- LED Indicators: 2 channels for status indication
- Buttons: 1 reset button and 1 BOOT button
- USB to TTL Port: 1 channel for downloading and debugging, enabling automatic loading
- Antenna: Integrated 2.4G PCB onboard antenna
🔘 Note: This development board accommodates multiple development frameworks; however, technical support is provided exclusively for LuatOS. Users are encouraged to explore other development methodologies independently. Any issues arising from usage are not covered by after-sales support.
📦 Package Includes: 1x ESP32-C3 Module
