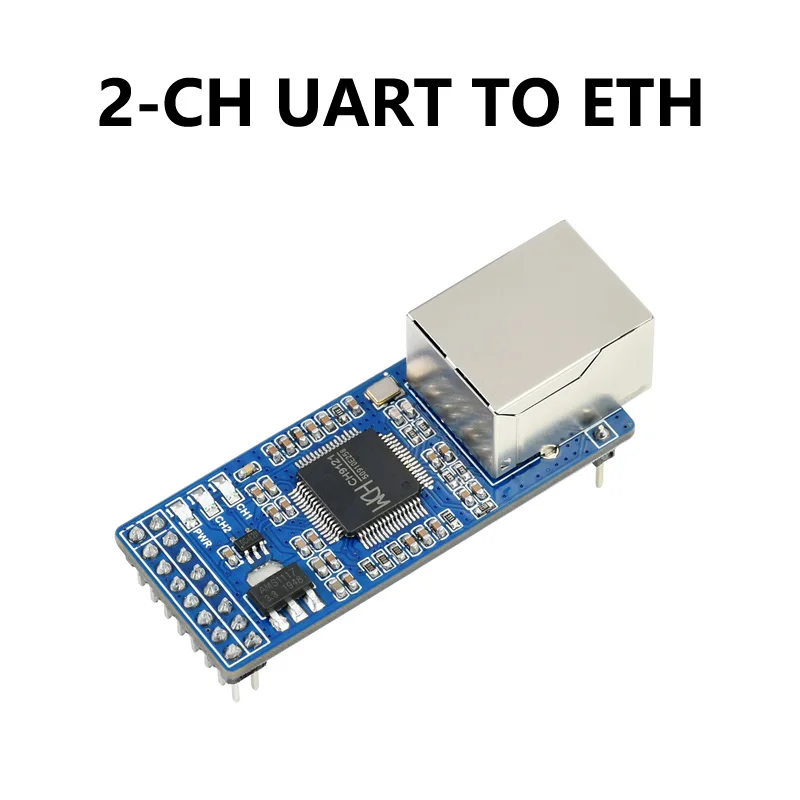

2-Channel UART to Ethernet Converter: The Ultimate Solution for Serial Communication
🔎 The 2-CH UART to Ethernet Converter is a high-performance module designed to facilitate seamless communication between UART TTL interfaces and RJ45 Ethernet networks. This device is ideal for applications that require reliable, bi-directional transparent data transmission over long distances.
🔧 Feature Highlights:
- Ease of Use: Simple integration into existing systems makes it user-friendly, suitable for developers and engineers alike.
- Advanced Technology: Built-in Ethernet MAC and PHY layers ensure robust network communication capabilities.
- Fast Data Rate: Achieves high-speed data transfer, optimizing the performance of your applications.
- Low Power Consumption: Designed with energy efficiency in mind, making it perfect for IoT and battery-operated devices.
- High Stability: Reliable performance in various operational environments enhances overall system integrity.
🏎️ Technical Specifications:
- Supports 10/100M Ethernet interface with full-duplex/half-duplex auto-negotiation, compliant with 802.3 standards.
- Features Auto-MDI/MDIX, which automatically detects and switches cable types, simplifying the setup process.
- Enables DHCP for automatic IP assignment and DNS domain access, allowing for quick network configuration.
- Offers four operational modes: TCP CLIENT, TCP SERVER, UDP CLIENT, and UDP SERVER, to meet diverse communication needs.
- Two-channel UART allows for concurrent operation, ensuring that each channel operates independently for efficient data handling.
- Supports RS485 RX/TX auto switching, accommodating various serial communication requirements.
- Virtual serial port software is included, providing additional flexibility and usability for developers.
⚡ Application Scenarios:
- Enables bi-directional transparent data transmission between UART TTL devices and wired Ethernet.
- Extends communication distances for serial devices to enhance functionality.
- Allows remote management of multiple serial client devices through a single web server.
- Facilitates remote control of serial servers via multiple web clients.
🔎 What's Included:
- Connection Status Indicators: Visual feedback for UART 1 and UART 2 status to ensure reliable communication.
- Dedicated Power Indicators: To quickly ascertain power status and functionality.
- Control and Power Supply Components: Featuring CH9121 control pins and AM1117-3.3V / RT9193-18GB power supply ICs for stable operation.
💍 Development Resources: Comprehensive documentation and examples for platforms like Pico, Raspberry Pi, Arduino, and STM32 are provided to aid in the development process.
🧠 Elevate your serial communication capabilities with the 2-CH UART to Ethernet Converter, bridging the gap between traditional serial devices and modern wired Ethernet networks.
