🌿 Overview: Experience high-quality audio with the 2.8 Inch TFT Color LCD Lossless MP3 Decoder Board. This advanced device is designed for true audiophiles, seamlessly integrating various audio sources for an unparalleled listening experience.
🔧 Core Features:
- Multifunctional Audio Decoder: This versatile stereo audio decoder board incorporates Bluetooth audio decoding alongside support for TF cards and USB music files. It also functions as a computer USB sound card, offering multiple ways to enjoy your favorite tunes.
- Vibrant Display: The stunning 2.8-inch IPS color screen boasts a resolution of 320 x 240 pixels, providing vivid playback status updates and detailed decoding information at a glance.
- Flexible Audio Input: Equipped with a 3.5mm stereo line-in connector, the decoder readily accepts audio signals from a variety of devices, including smartphones, computers, and MP3 players, allowing for effortless connectivity.
- Bluetooth Capability: Utilizing the latest Bluetooth 5.3 technology, this decoder supports SBC and AAC audio transmission protocols. It enhances your listening experience with features like song title and lyrics display, as well as real-time spectrum visualization.
- Customizable Sound: Tailor your audio experience with a built-in equalizer offering 7 preset EQ scenes plus one customizable option. This allows for optimal sound performance, accommodating individual preferences and speaker characteristics.
🧩 Technical Specifications:
- Interface Languages: Supports Simplified Chinese, Traditional Chinese, and English displays.
- Power Requirements: Operates on a regulated power supply with a voltage range of 4.5-5.0V.
- Current Consumption: Standby current is 20mA, while the operating current ranges from 30-180mA, ensuring efficient performance.
- Audio Output: Delivers an output signal power of ≤50mW, with a signal-to-noise ratio (SNR) of ≥104dB, providing crystal-clear sound quality.
- Output Channels: Features 2 audio output channels, with a hardware bit width of 24bit for superior audio fidelity.
- Bluetooth Range: Boasts a Bluetooth receiving distance of approximately 10 meters, ensuring flexible placement options.
- Dimensions: Compact design measures 13.5 * 6.95 * 3.5 cm, making it an excellent addition to any audio setup.

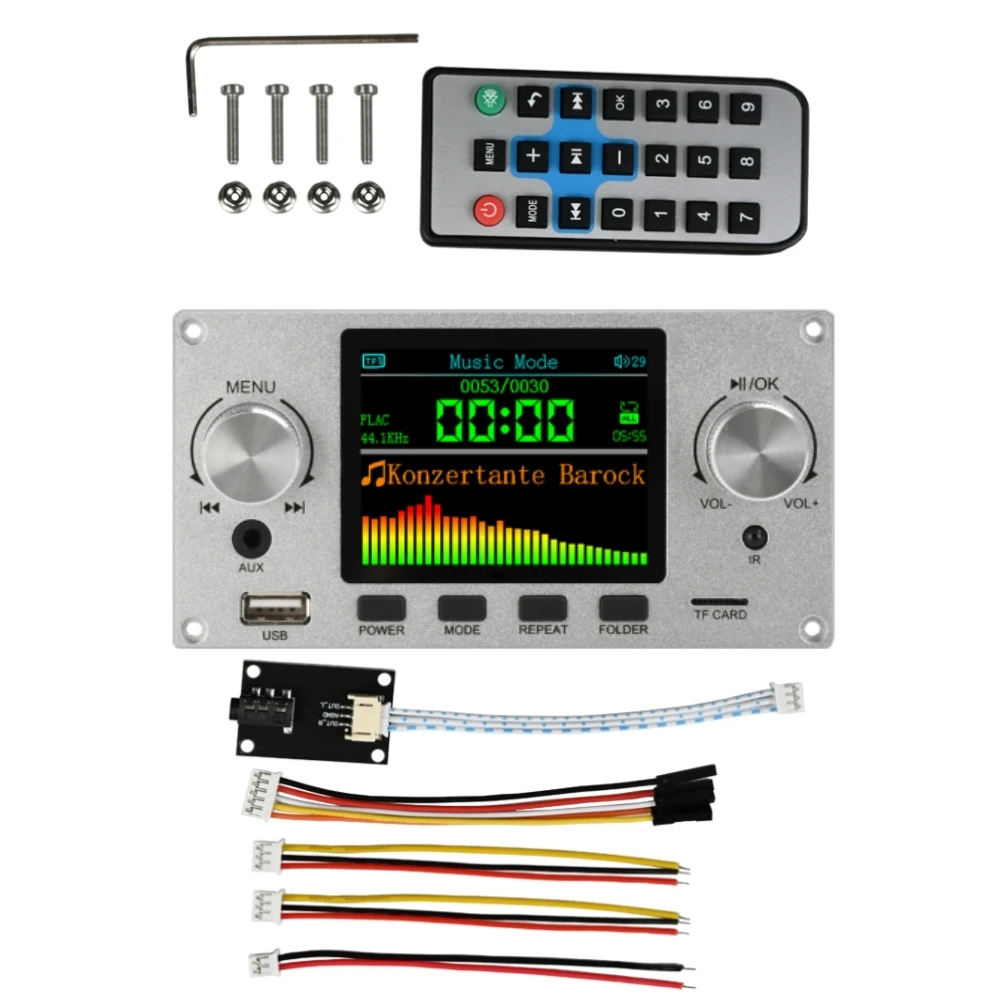

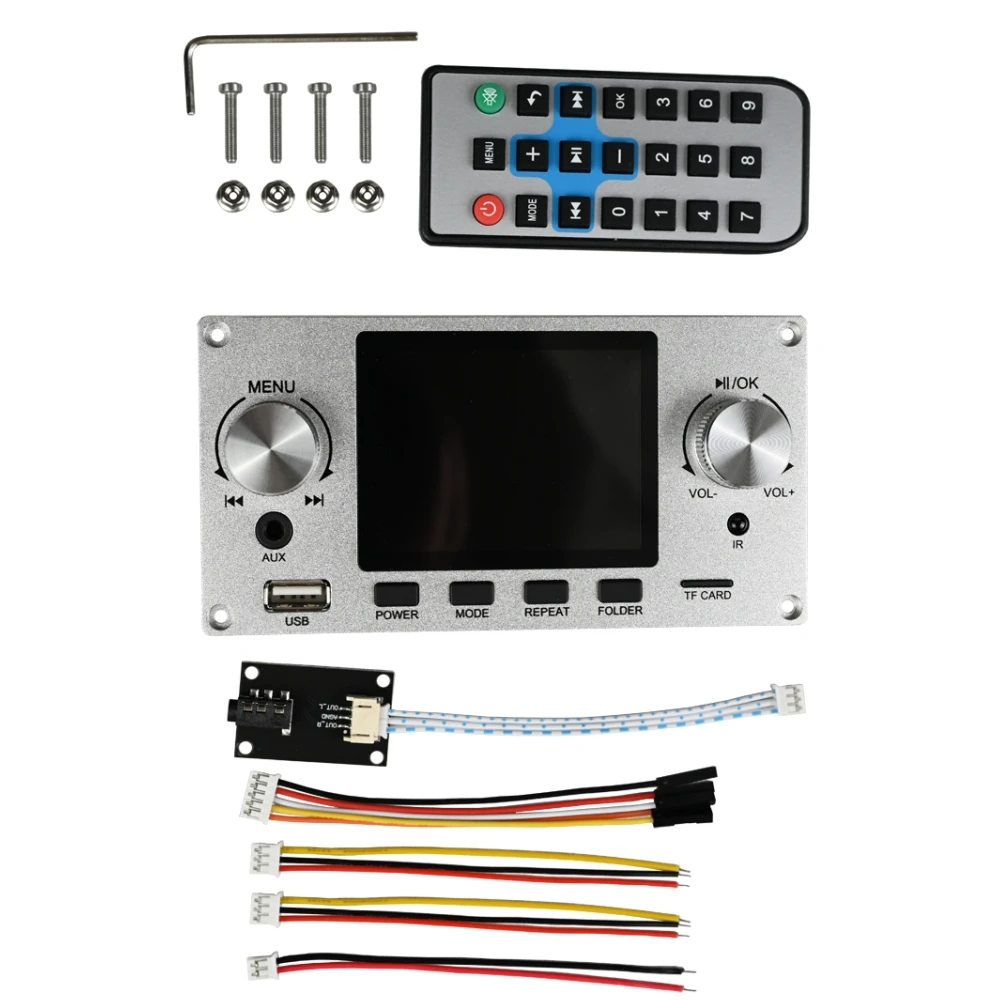

🔍 Included in the Package:
- Decoder board module *1
- M3 hexagonal wrench *1
- M3X16 hexagonal screws + nuts *4
- Remote control *1
- 3.5mm audio jack cable *1
- PH2.0/5PIN to Dupont cable *1
- PH2.0/3PIN cable *2
- PH2.0/2PIN power cable *1
🔧 Enhance your audio experience with advanced decoding technology and user-friendly features with the 2.8 Inch TFT Color LCD Lossless MP3 Decoder Board.
