Product Description:

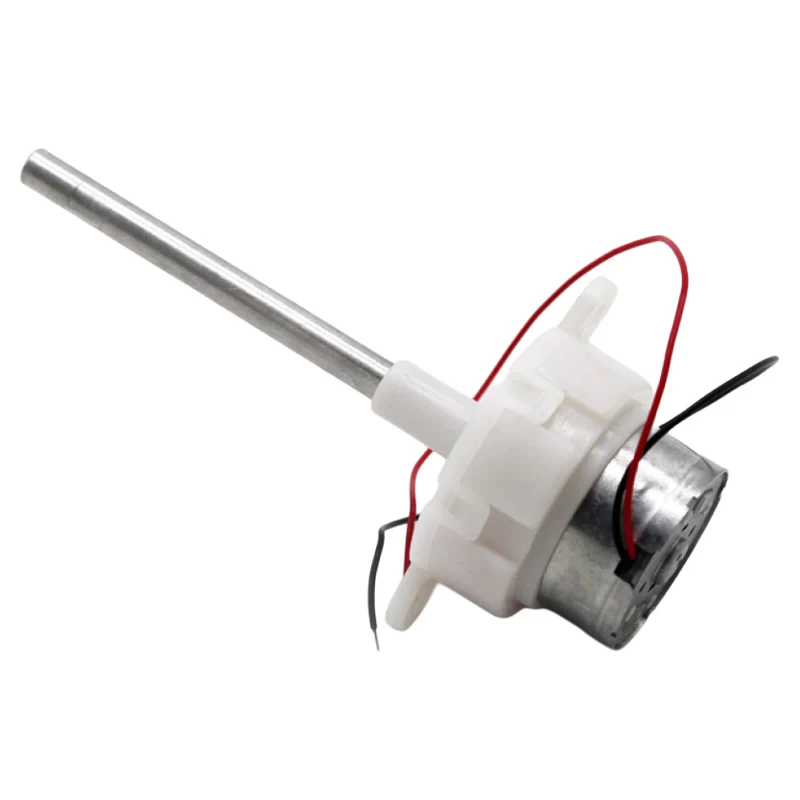

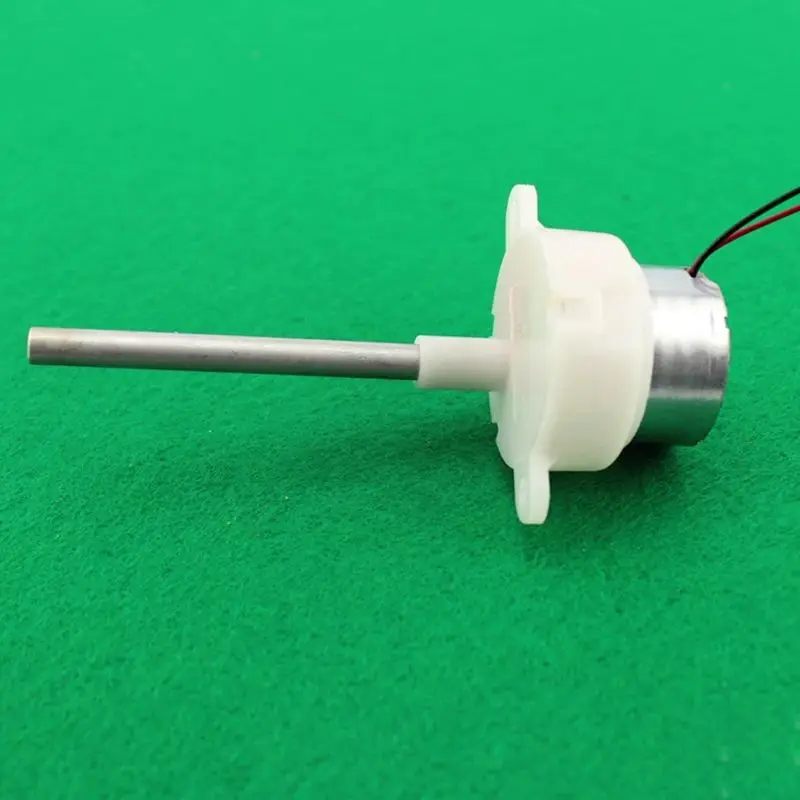

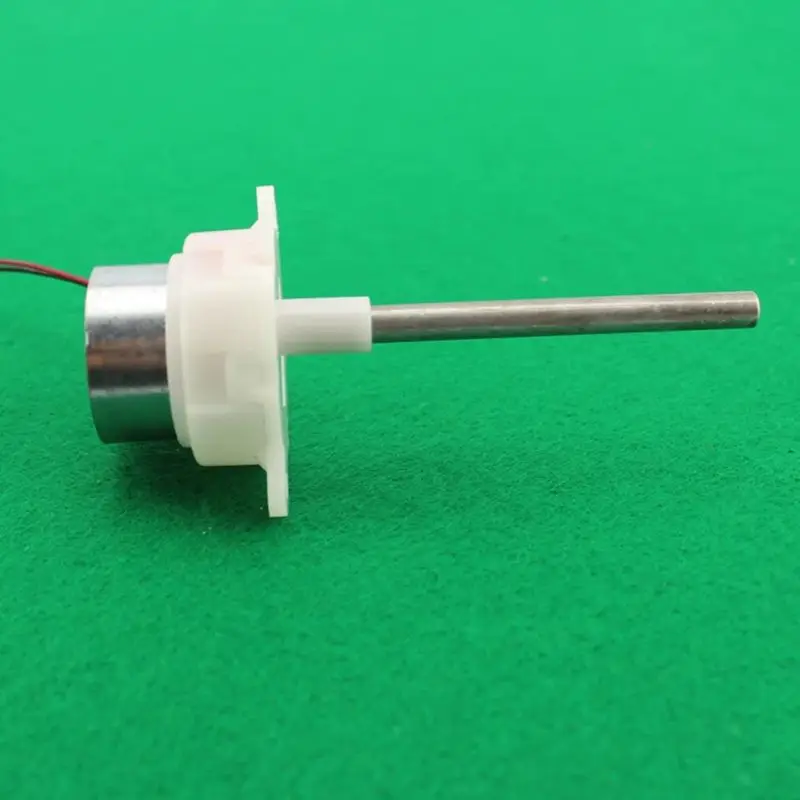

🏆 Introducing the White Round DC Electric Gear Motor, available in 3V, 6V, and operating at speeds of 10 RPM and 21 RPM. This long-axis electric gear motor is designed to provide exceptional stability and low-speed performance, making it an ideal choice for creating solar-powered DIY models and various small projects.
🔧 Key Features:
- Motor Design: Featuring a long shaft that enhances the versatility and ease of integration into various applications.
- Stable Performance: Engineered for low-speed operation while maintaining strong stability, suitable for intricate designs and precision tasks.
- Solar Compatibility: Optimally designed to operate with solar panels, with a 3V, 100mA solar panel being sufficient to power this motor effectively.
🛠️ Technical Specifications:
- Rated Voltage: Operates within a voltage range of 1-6V.
- Current Ratings:
- 3V: 0.02A (0.04A at stall)
- 6V: 0.04A (0.07A at stall)
- Speed Ratings:
- 10 RPM at 3V
- 21 RPM at 6V
🪶 Dimensions:
- Motor Size: Diameter of 32mm and a thickness of approximately 24mm.
- Shaft Specifications: Length of about 65mm and diameter of 5mm, featuring a blind hole for securing with an M3 screw at the end.
- Weight: Approximately 29 grams, making it lightweight and easy to incorporate into your projects.
🕊️ Included in Your Purchase:
- 1 PC of the White Round DC Electric Gear Motor.
⚪ Note:
- Please allow for a slight variation of 1-3mm due to manual measurement.
- Colors may vary slightly from what is displayed in photos, as different monitors may not be calibrated identically.
