High - Performance Metal Gear Servo for RC Models and DIY Projects (MG90S 360)

🔩 SG90 MG90S Servo Metal Gear for Model Helicopter, Boat, Arduino, Toy Airplane, and Fixed Wing Aircraft

🛠️ Upgrade your model building experience with the SG90 and MG90S servos, designed for versatility and reliability in various applications including helicopters, boats, and airplanes. Whether you're working with DIY projects or advanced robotics, these servo motors provide precision control that meets a wide range of needs.

💍 Steering Gear Control:

⚡ The SG90 and MG90S servos utilize a control method based on pulse width modulation (PWM), typically requiring a time base pulse of approximately 20ms. The 'high level' portion of this pulse controls the servo's angle, varying from 0.5ms to 2.5ms depending on the desired position.

Servo Characteristics:

• SG90 Servo:
  • Rotation Angle: 0-180 degrees
  • Control Relationship:
    • 0.5ms - 0 degrees
    • 1.0ms - 45 degrees
    • 1.5ms - 90 degrees
    • 2.0ms - 135 degrees
    • 2.5ms - 180 degrees
  • Operational Speed: 0.1 second per 60 degrees at 4.8V
  • Stall Torque: 1.6kg/cm
  • Operating Voltage: 4.2V
  • Temperature Range: 0 ℃ to 55 ℃
  • Dead Band Width: 10μs
  • Gear Material: Nylon
• MG90S Servo:
  • Rotation Angle: 0-180 degrees / 360 degrees (Continuous rotation)
  • Working Torque: 2kg/cm
  • Reaction Speed: 0.11 seconds per 60 degrees at 4.8V
  • Operating Temperature: 0 ℃ to 55 ℃
  • Dead Band Width: 5ms
  • Gear Material: Combination of Aluminium and Plastics/All Metal

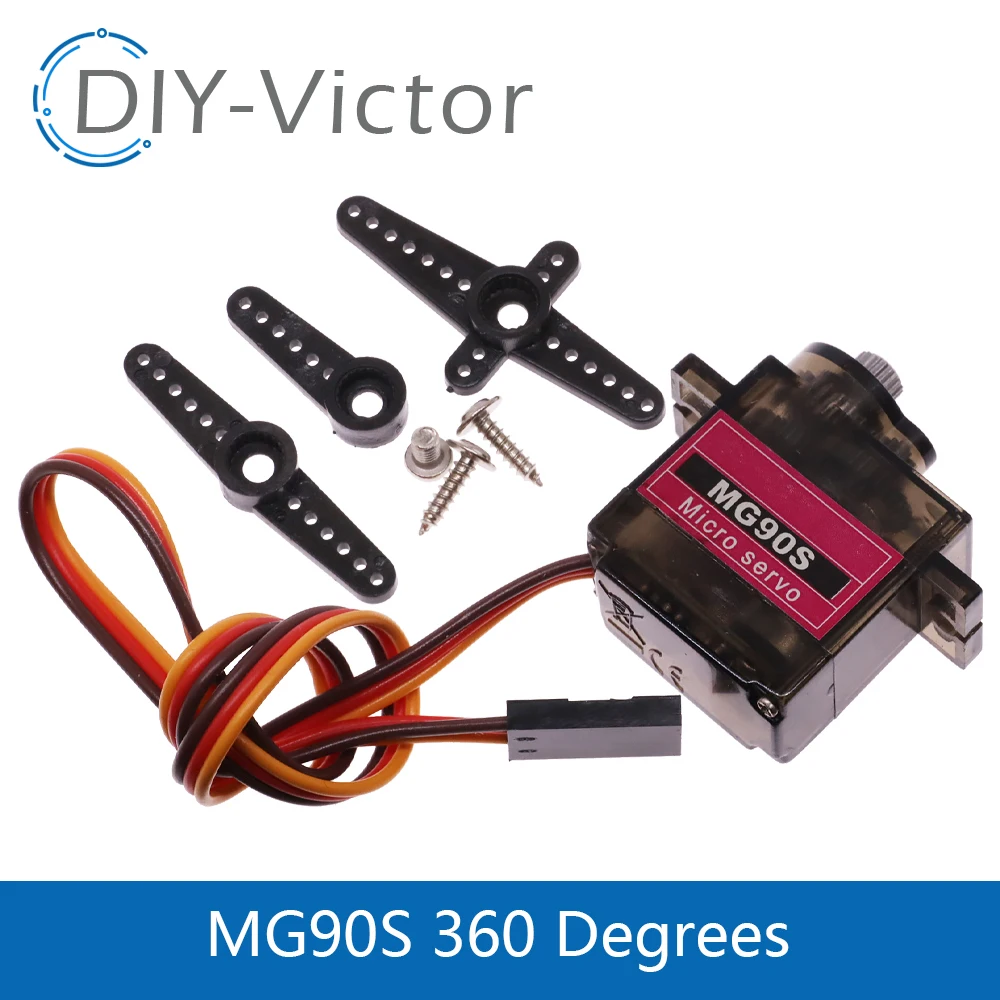

🔩 The SG90 and MG90S servos come equipped with multi-arms and fixing screws for easy installation, ensuring they integrate seamlessly into your projects. Their compact dimensions of 22.8 x 22.4 x 12mm make them suitable for small to medium-sized electric model aircraft and other applications, while the lasting performance ensures they can handle the demands of your creative endeavors.

Packing Options:

⚡ Available in packs of 2, 4, 5, 10, or 20 servos, with accessories included to support all your build requirements.

🛠️ Experience the precision and reliability of SG90 and MG90S servos and take your model creations to new heights!
