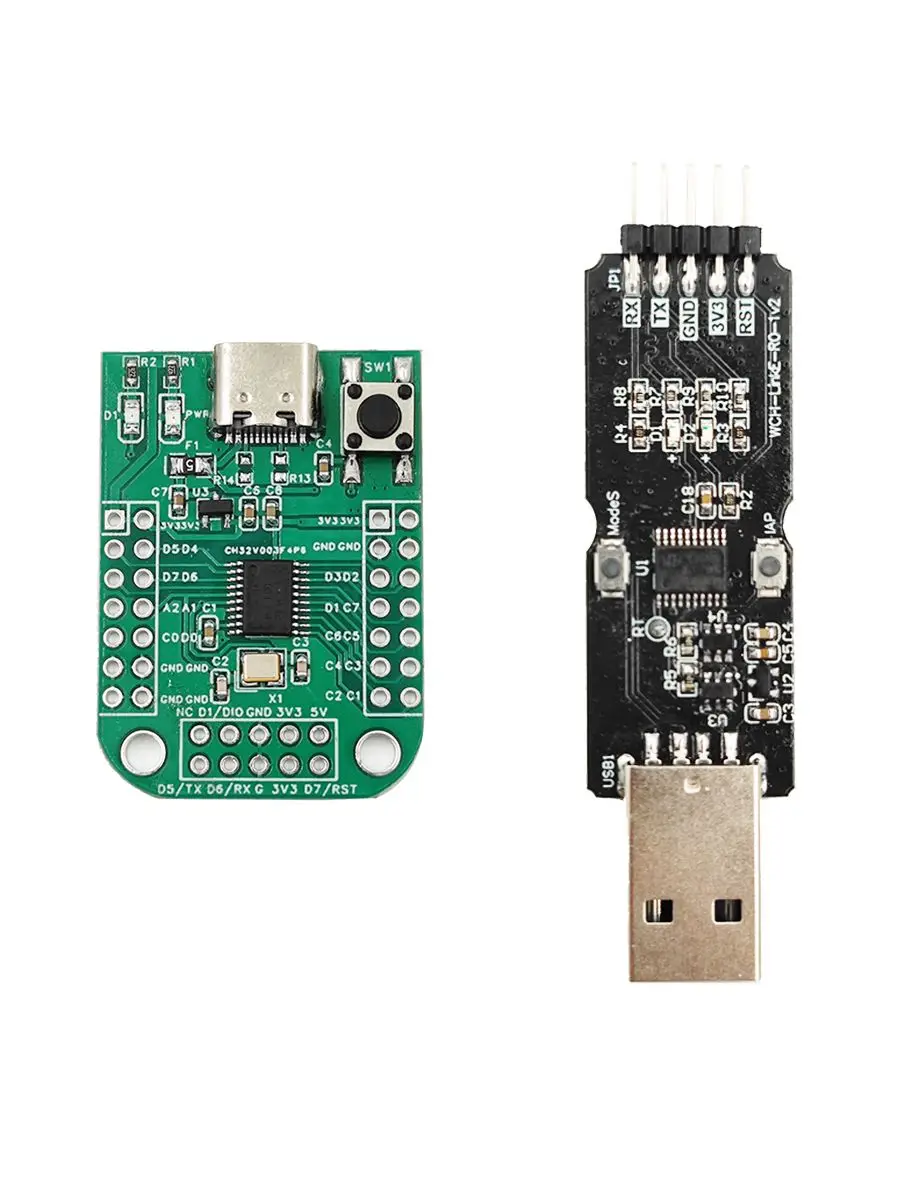

Enhanced Development Board with QingKe RISC - V2A MCU and 48MHz Frequency (Ch32v003 wchlinke)

⚡ CH32V003 Development Board - The CH32V003F4P6 MCU is a cutting-edge microcontroller based on the industrial-grade QingKe RISC-V2A architecture. Designed for general-purpose applications, this board operates with a main frequency of 48MHz and supports a wide voltage range, making it versatile for various projects. Its 1-wire SDI system enhances communication capabilities while maintaining low power consumption in an ultra-small form factor.

🛠️ 1. Overview
The CH32V003 series microcontroller is a robust solution for embedded applications, equipped with a built-in DMA controller for efficient data handling, a 10-bit ADC for precise analog input, and an Operational Amplifier (OPA) for signal processing. The extensive timing features include multiple timers to manage task scheduling and event counting, alongside standard communication interfaces such as USART, I²C, and SPI. This integrated platform is ideal for developers looking to create efficient and cost-effective solutions.

🌟 2. Product Features

• Processor: QingKe 32-bit RISC-V2A with dual-level interrupt nesting support
• Operating Frequency: Up to 48MHz
• Memory: 2KB SRAM, 16KB Flash
• Power Supply: Compatible with 3.3V or 5V systems
• Low Power Modes: Supports Sleep and Standby modes to optimize energy consumption
• Reset Features: Includes power-up/down reset and a programmable voltage detector
• DMA Controller: One general-purpose DMA channel
• OP Amplifier: One integrated operational amplifier
• ADC: One 10-bit analog-to-digital converter
• Timers: One advanced-control 16-bit timer, one general-purpose 16-bit timer, two watchdog timers, and one 32-bit SysTick timer
• Communication Interfaces: One USART, one I²C interface, and one SPI interface for versatile connectivity
• I/O Ports: 18 general-purpose I/O ports with the capability to map an external interrupt
• Unique Identification: 64-bit chip unique ID for security and identity management
• Debug Interface: 1-wire serial debug interface (SDI) for easy programming and troubleshooting

📦 Customer Feedback
Customers praise the CH32V003 Development Board for its powerful capabilities in a compact design, highlighting its efficiency in handling various tasks and excellent communication options.
