Product Overview:
🏆 Introducing the ES8311 NS4150B 3W CODEC Audio Amplifier Module, a sophisticated audio solution designed for seamless integration with the ESP32 C3 and S3 development boards. This module stands out for its exceptional audio performance and user-friendly features, making it an ideal choice for DIY audio projects and professional applications alike.
🔧 Key Features:
- High Integration Dual-Core Design: Leveraging the powerful combination of ES8311 + NS4150B, this module offers a high level of integration that ensures stable and reliable sound quality, perfect for a variety of audio applications.
- Advanced Audio Capabilities: Equipped with a digital microphone and a 3W high-efficiency power amplifier, it ensures clear sound capture and robust audio output, suitable for voice applications, music, and more.

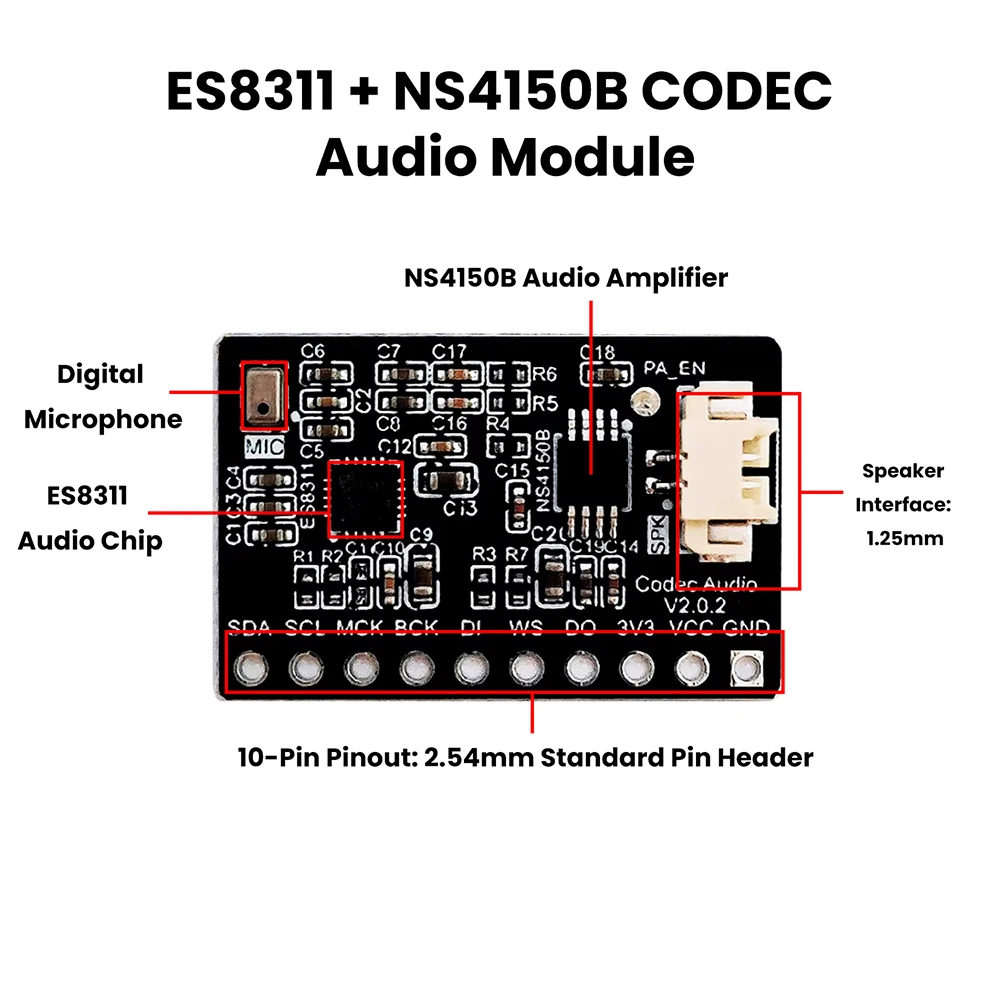

- Streamlined Connectivity: The module features a standard 10-pin/2.54mm pitch interface with clearly defined pin layouts, enabling quick and hassle-free connections to your development boards.
- Broad Compatibility: Designed to work seamlessly with popular development boards such as the ESP32-C3 and ESP32-S3, this module simplifies integration with straightforward hardware and software adaptations.
- Compact and Efficient: With a space-saving design, measuring only 26.1mm x 17mm and a PCB thickness of 1.2mm, this module is highly adaptable, making it an excellent choice for projects with space constraints.
🔍 Technical Specifications:
- Audio Chip: ES8311
- Audio Amplifier: NS4150B
- Amplifier Power: 3W
- Pin Configuration: 10-pin, 2.54mm pitch
- Compatible Boards: ESP32-C3, ESP32-S3
- Power Supply: 3V3 + VCC (recommended 5V) + GND
- Communication Interface: I2C (SDA, SCL), I2S (MCK, BCK, DI, WS, DO)
🌿 Product Configurations:

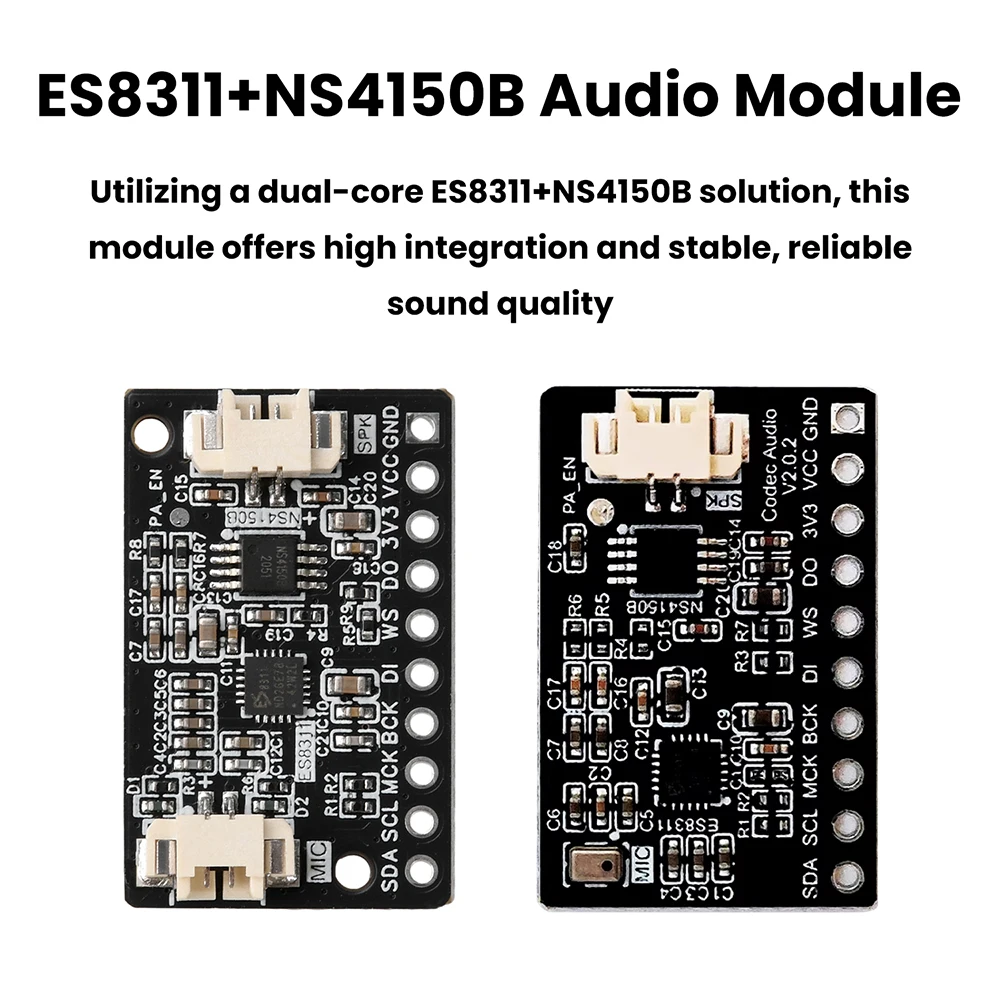

- Set 1: Built-in Microphone Audio Module, 1 x Jumper Wire
- Set 2: External Microphone Audio Module, 1 x Jumper Cable, 1 x Microphone Pickup
🎤 This audio module is poised to elevate your projects, delivering high-quality audio output coupled with an intuitive design that makes it easy to integrate into your existing setups.
