WiFi Bluetooth Dual - Core Development Board with Antenna (1PCS)

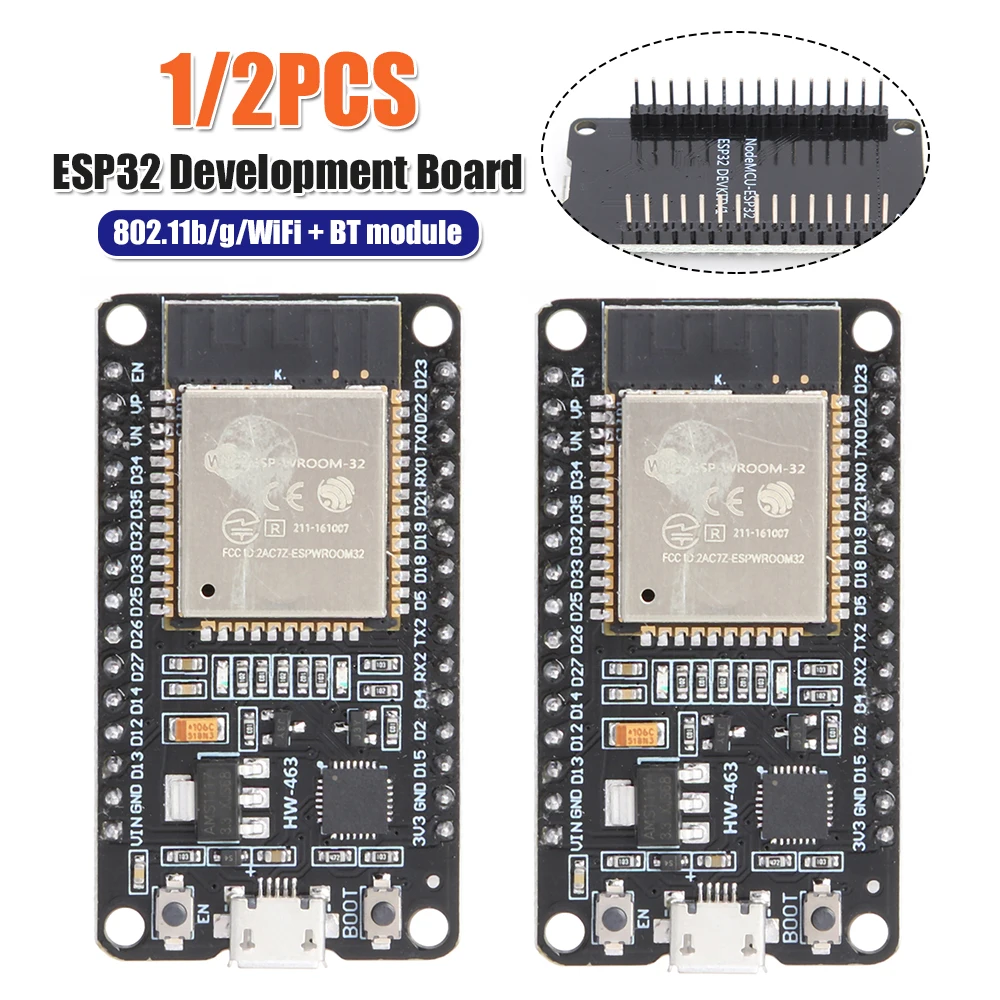

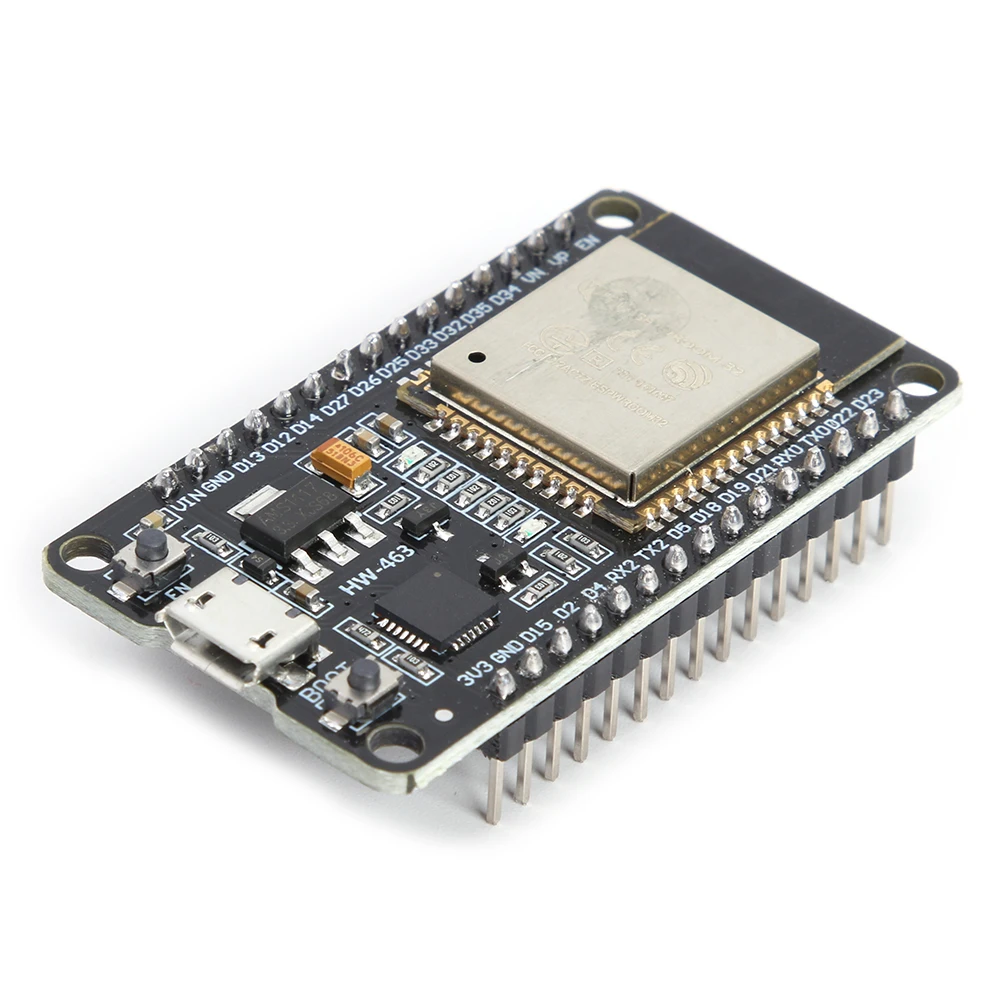

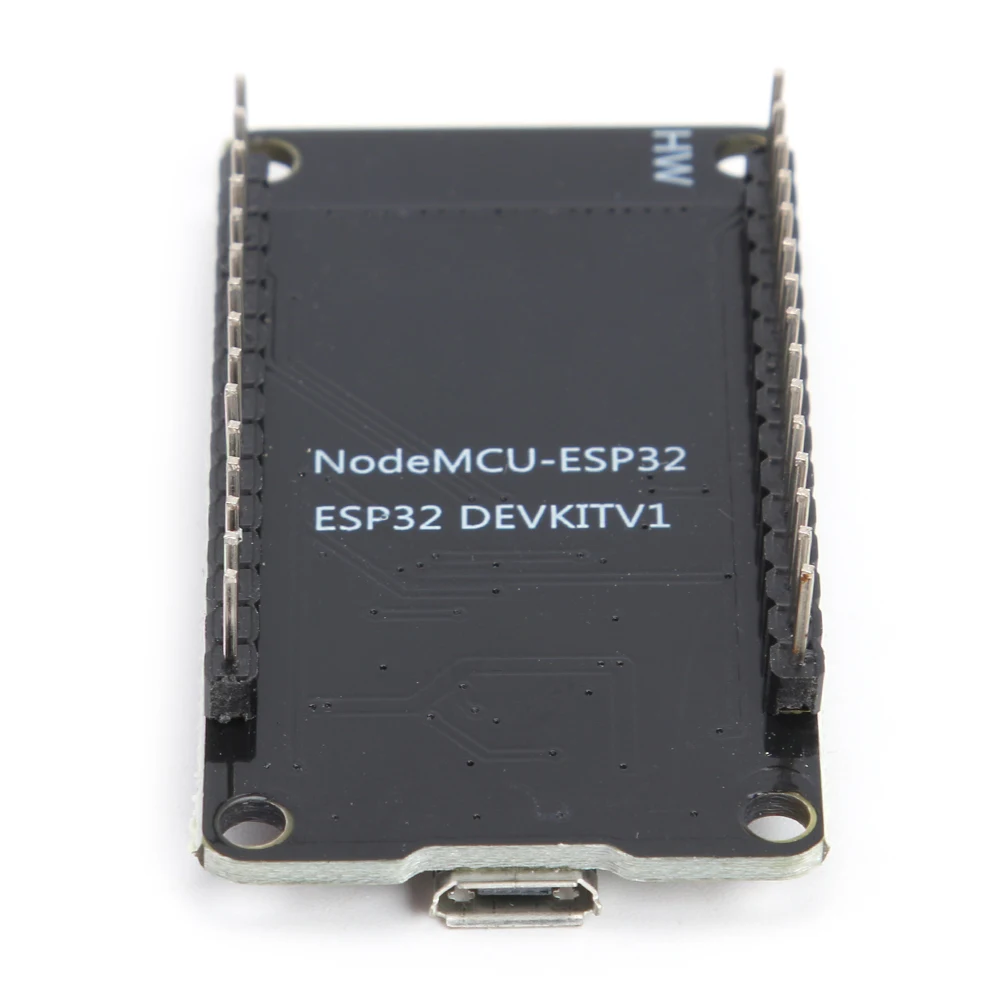

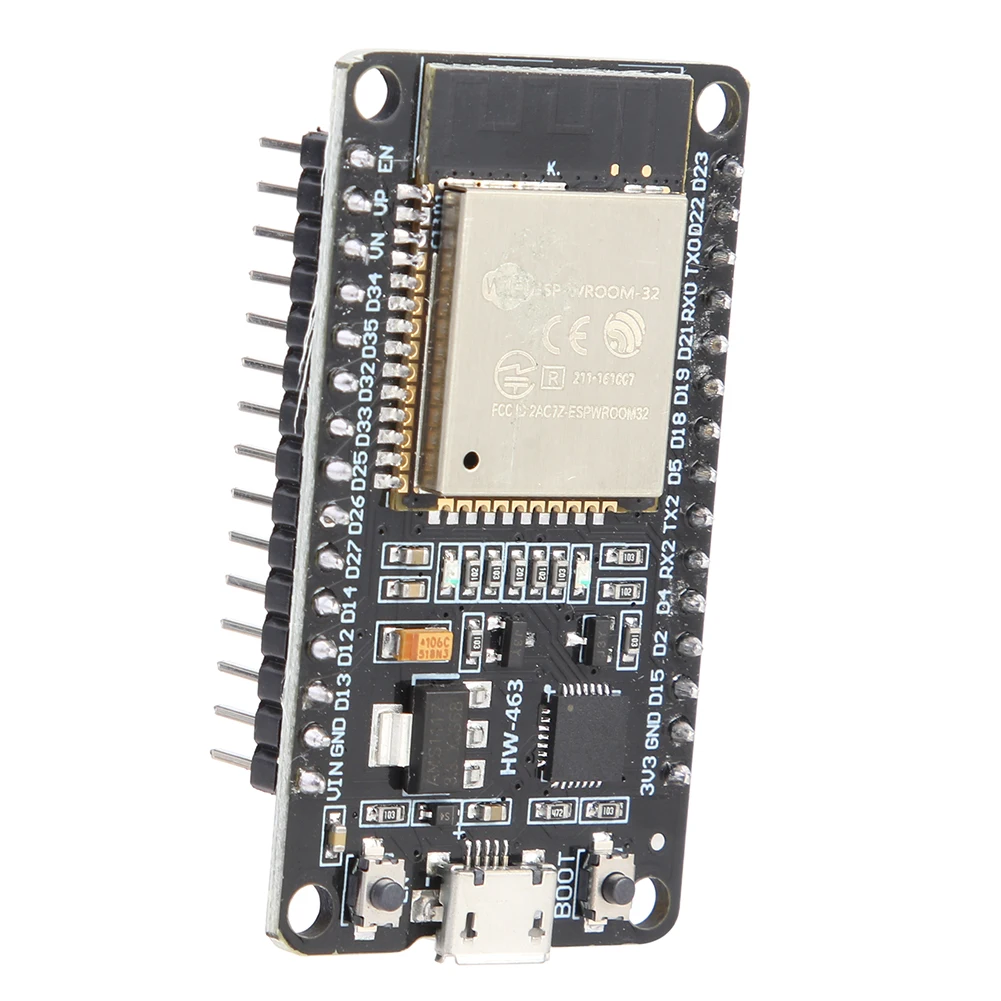

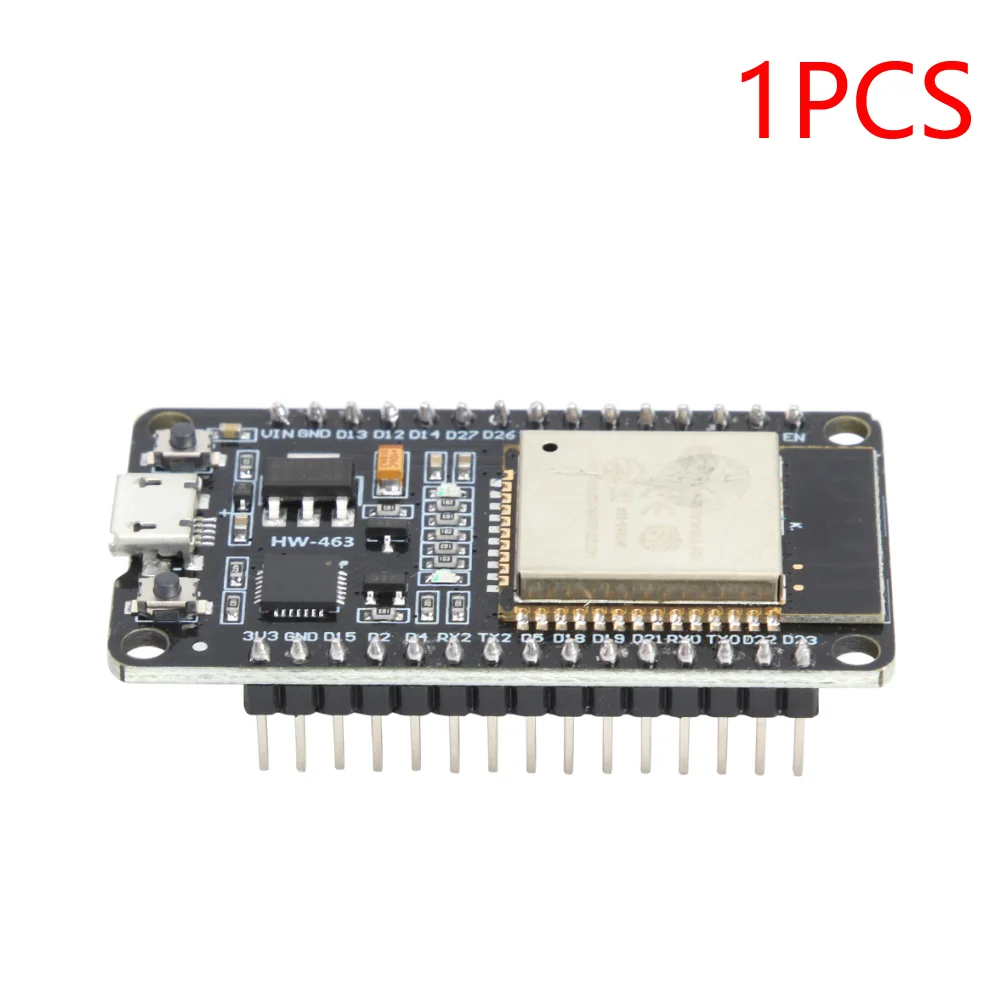

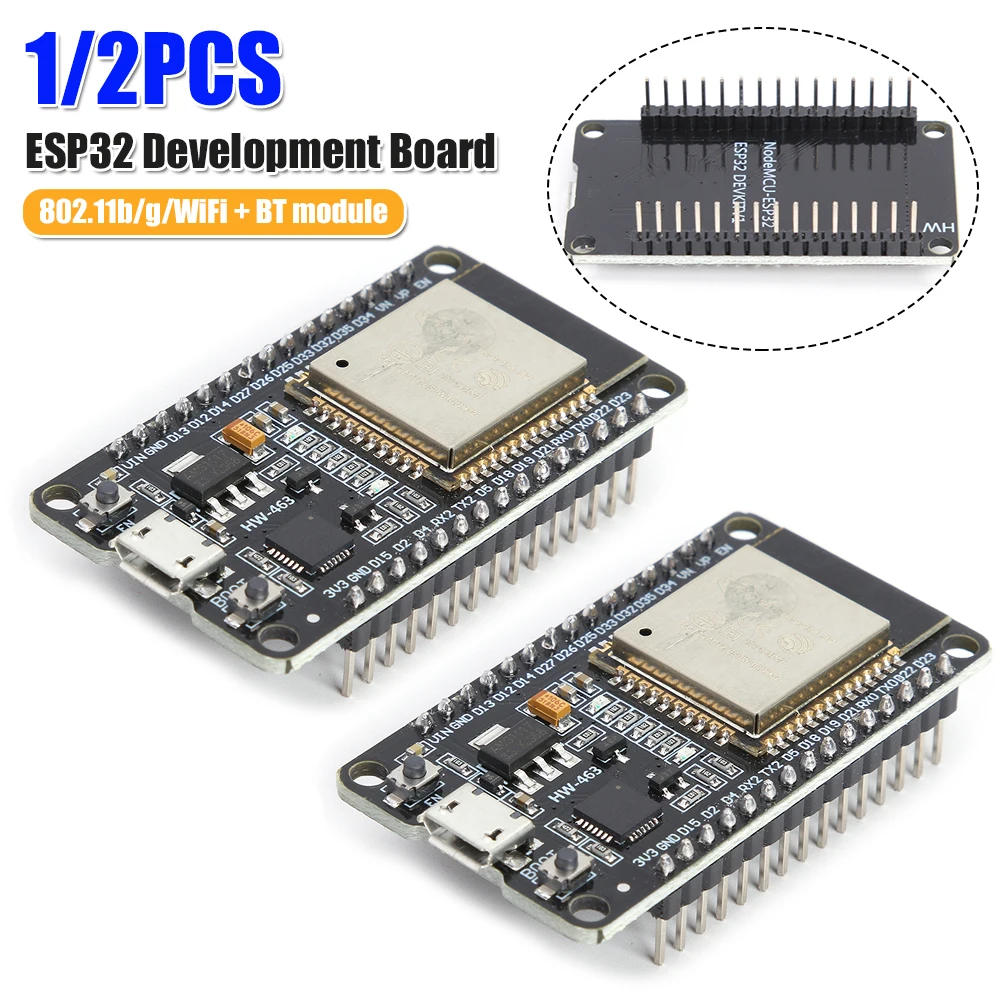

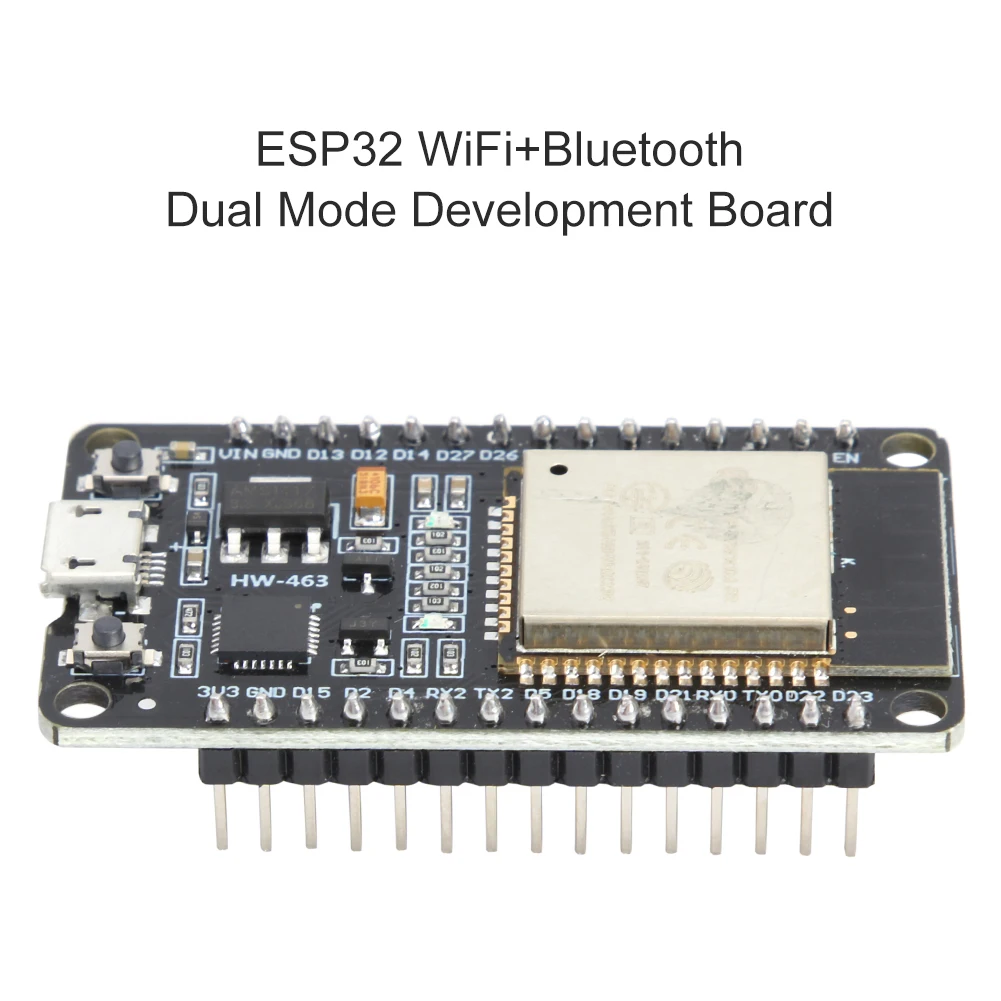

🔵 ESP-32S ESP32 WiFi Bluetooth Development Board

🪶 The ESP-32S is an advanced ESP32 development board that integrates cutting-edge WiFi and Bluetooth capabilities within a compact and user-friendly design. At the heart of this module is the robust ESP32 chip, providing a powerful dual-core CPU that operates at a maximum frequency of 240MHz, capable of processing up to 600 DMIPS, making it ideal for high-performance applications.

💍 This development board is equipped with a USB serial chip, specifically the CP2102, allowing for seamless connection to a computer via a micro USB interface. This feature enhances the module's usability by facilitating direct debugging and ensuring fast, stable data transmission during development.

🧩 Visible indicators enhance user experience; a red LED serves as a power indicator while a blue LED displays the operational status of the module, enabling users to monitor functionality at a glance.

🔘 Two intuitive touch buttons are positioned on the board; one functions as a reset button, and the other activates the program mode. This design simplifies interaction and encourages a smoother development workflow. Additionally, the abundance of accessible pins on both sides of the board fosters easy connections and integration with external components.

🪶 The ESP-32S excels in versatility, supporting multiple development environments like NodeMCU, which broadens the availability of resources and significantly eases the learning curve for developers. Its extensive applications are perfect for various Internet of Things (IoT) projects, including home automation systems, wireless industrial controls, and precise positioning systems.

🔧 Features:

• Comprehensive support for multiple communication protocols including UART, SPI, I2C, and PWM, enhancing its applicability across a wide range of projects.
• Low power consumption with the capability to enter deep sleep mode, drawing only 6.5µA, which is ideal for battery-powered devices.
• Embedded LwIP and FreeRTOS for efficient network connectivity and multitasking capabilities.
• Supports multiple operational modes: STA, AP, and STA+AP, for dynamic configuration based on project requirements.
• Incorporates Smart Config and Airkiss for easy network setup and configuration.
• Flexibility of local and remote firmware upgrades (FOTA), ensuring your device remains up-to-date with the latest features and security enhancements.

⚡ Specifications:

• SPI Flash: Default 32Mbit
• Bluetooth: Supports Bluetooth 4.2 BR/EDR and BLE standards
• On-chip sensors include Hall sensor, temperature sensor, and capacitive touch sensor
• Power consumption: Up to 300mA at 3.3V
• Operating temperature range: -20°C to 85°C
• Storage temperature: -40°C to 90°C
• Dimensions: 52 x 29 x 15 mm (2.04 x 1.14 x 0.59 inches)

⚡ The ESP-32S development board represents an essential tool for developers looking to innovate in the rapidly growing IoT landscape, combining functionality, flexibility, and ease of use in a single powerful module.

📦 Package Includes:

• 1 x ESP32 Development Board
