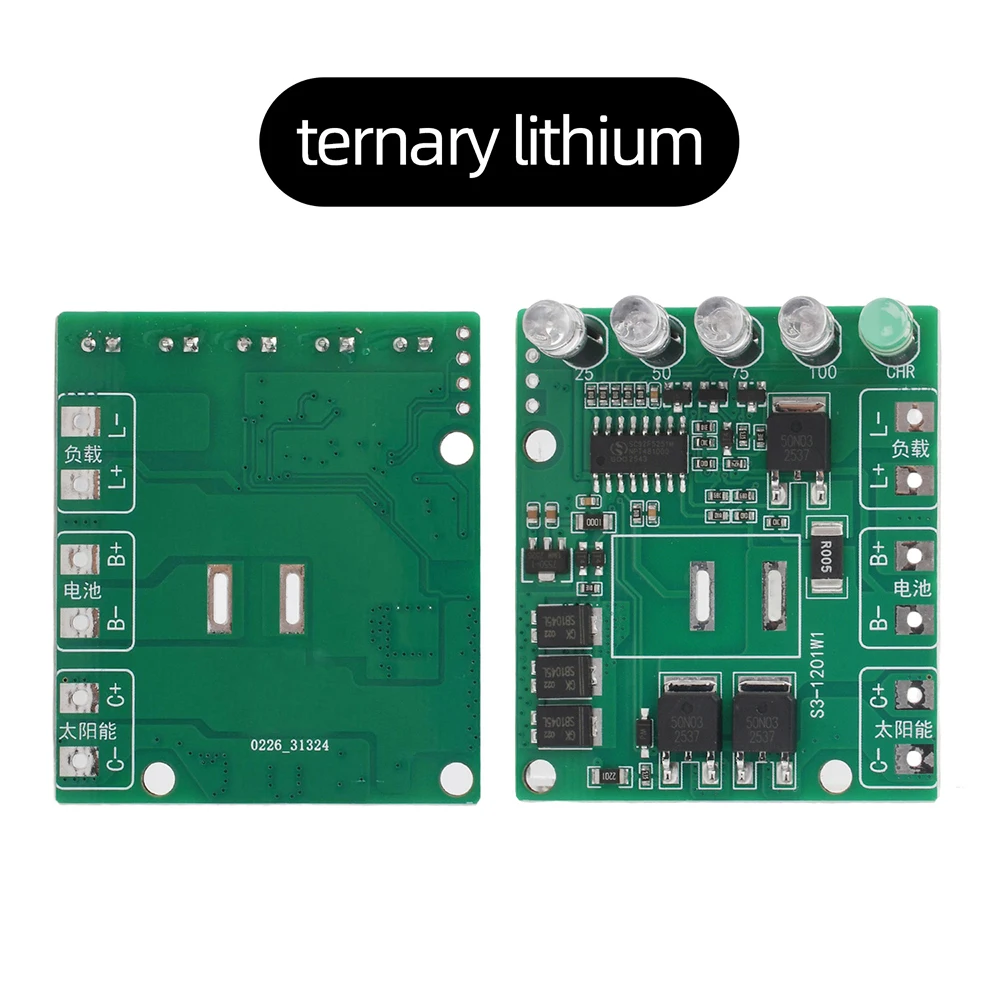

Advanced MPPT Solar Charging Controller Module for Lithium Battery Systems (3S)

🔋 MPPT Solar Controller 12V 12A is a sophisticated charging module designed specifically for ternary lithium and lithium iron phosphate batteries. This versatile 3S 4S solar charging control board intelligently manages the charging process, ensuring optimal performance and longevity of your battery systems.

🔧 Features:

• Optimized Power Calculation: The advanced charging algorithm efficiently balances charging speed with battery lifespan, providing a sustainable solution for solar power management.
• Robust Safety Mechanisms: Overcharge and over-discharge protection safeguards both your battery packs and connected devices, ensuring reliable operation under various conditions.
• LED Charging Indicator: A high-brightness multi-color LED display keeps you informed of the charging status, indicating when power is being input, the charging state, when the battery is fully charged, and alerting you to any abnormal conditions.
• Integrated Anti-Reverse Diode: This feature prevents current from flowing back from the battery to the solar panels, enhancing system reliability and protecting components from potential damage.
• High-Performance Components: Utilizing imported power MOSFETs and a state-of-the-art microcontroller, this controller ensures a swift response time and efficient energy management.

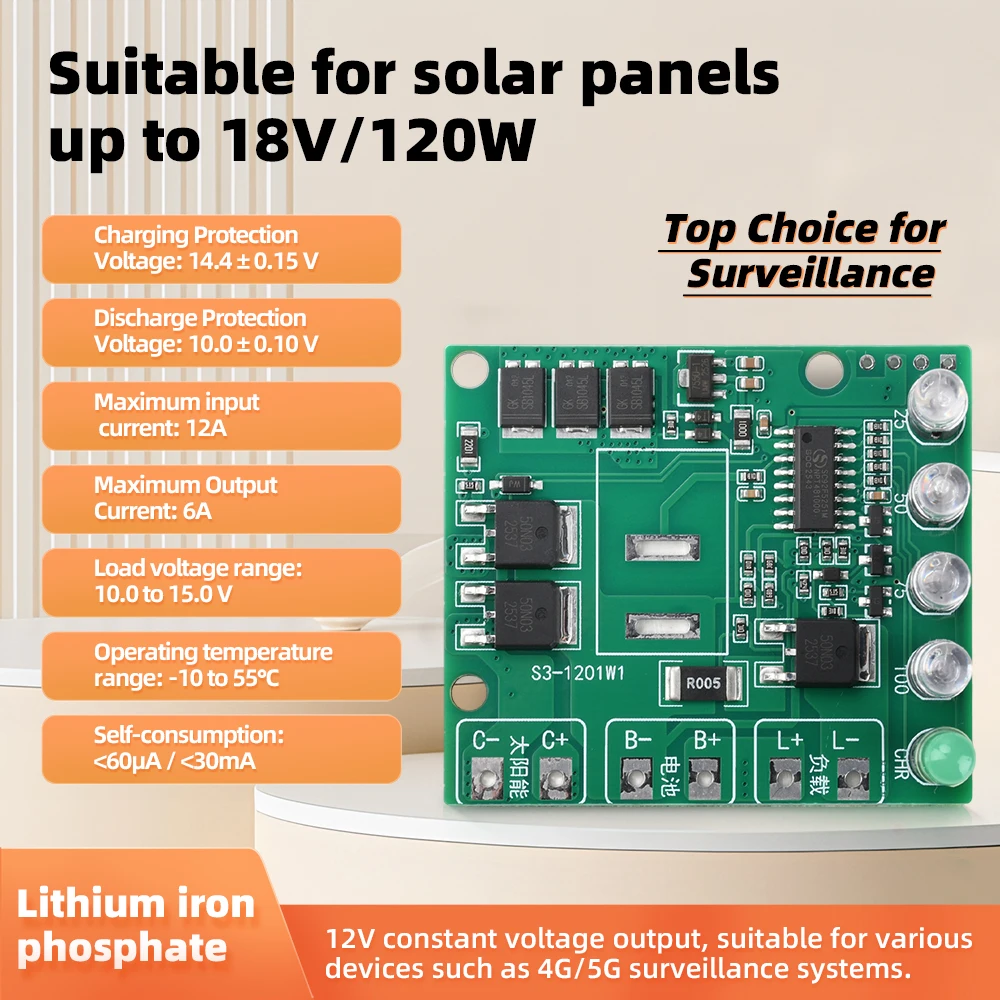

🧩 Specifications:

Charge Cut-off Voltage (V):
   Ternary Lithium: 12.6±0.1V
   Lithium Iron Phosphate: 14.4±0.1V

Discharge Cut-off Voltage (V):
   Ternary Lithium: 9.2±0.1V
   Lithium Iron Phosphate: 10.0±0.1V

🌿 Over-Discharge Recovery Voltage (V):
   Ternary Lithium: 10.5±0.1V
   Lithium Iron Phosphate: 10.8±0.1V

Discharge Voltage Range (V):
   Ternary Lithium: 9.2~13.6V
   Lithium Iron Phosphate: 10.0~14.8V

Maximum Input Current (A): 12A

Maximum Output Current (A): 6A

Standby Current (μA): < 100μA

Operating Current (mA): < 30mA

Compatible PV: 12~24V / ≤120W

⚡ Important Notes:

• This product is an electronic module intended for DIY applications and requires soldering and wiring. Ensure you are equipped for this process before purchase.
• Before selecting a model, verify your battery type (ternary lithium, lithium iron phosphate, lead-acid) along with the voltage of the battery and the device (5V/12V) you’ll be integrating.

🔋 Package Includes: Solar Charging Controller x 1
