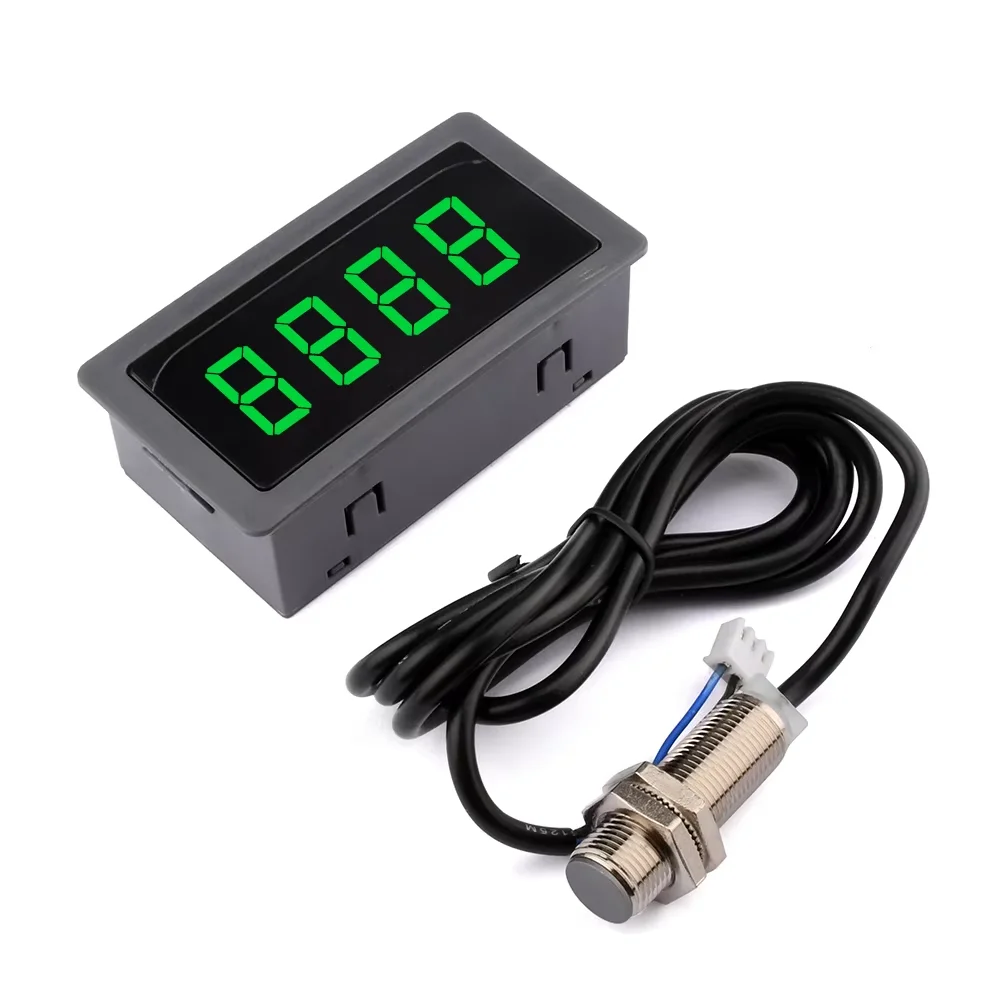

💍 Speed Measuring Instrument: 4 Digital DC8-24V LED Tachometer Gauge
🛠️ Introducing an advanced Tachometer Gauge RPM Speed Meter, designed to provide precise speed measurements for various motor applications. This high-performing instrument is paired with a Hall Proximity Switch Sensor (NPN), ensuring exceptional accuracy and reliability.
🔧 Key Features:
- Quality Construction: Made with premium materials that promise durability and consistent performance.
- Multifunctionality: This device offers both speed measurement and counting functions, making it versatile for different scenarios.
- Compatibility: It works seamlessly with a variety of detection switch signals, including Hall switches, metal proximity switches, and infrared proximity switches.
- High Sensitivity: The sensors boast remarkable sensitivity, reliability, and anti-interference capabilities, ensuring stable operations over long periods.
- Wide Application Range: Suitable for numerous applications, its reliable performance and straightforward installation make it an ideal choice for both hobbyists and professionals.
🔩 Technical Parameters:

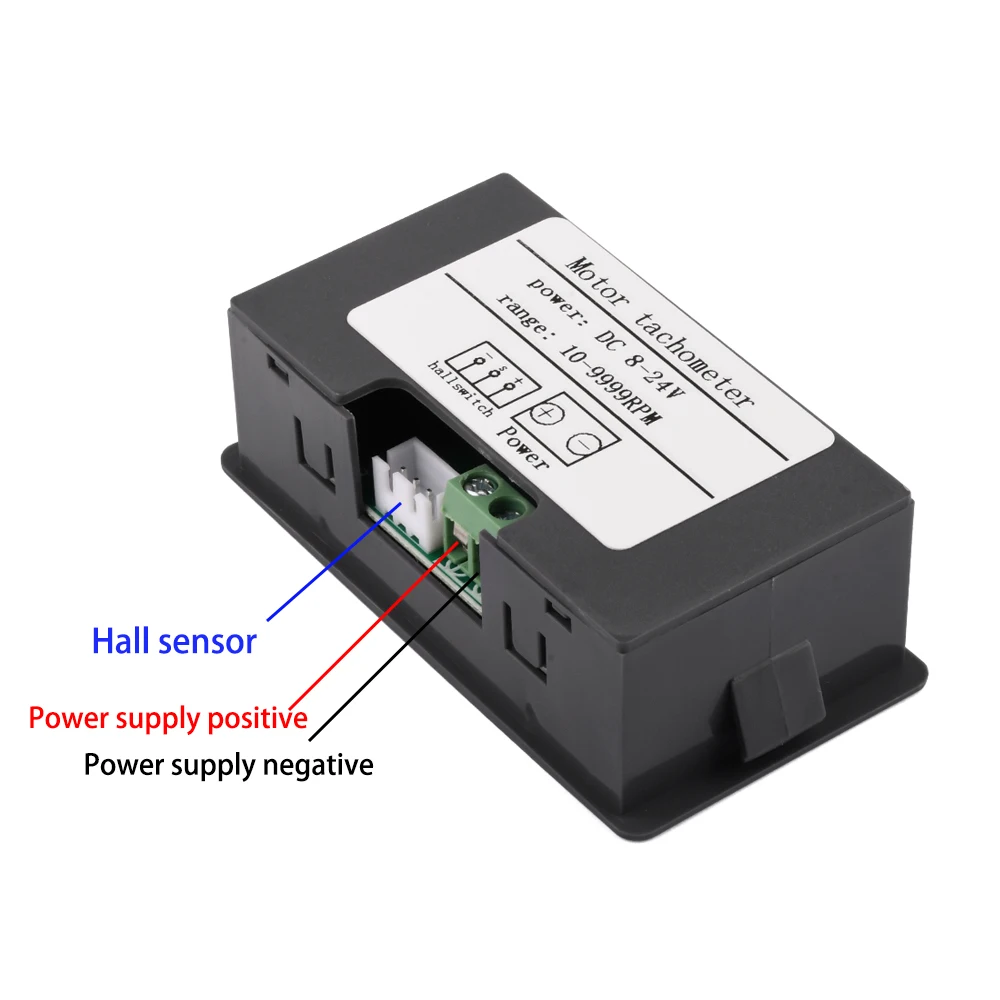

- Input Voltage: DC8-24V
- Hall Sensor Type: NPN, 5V
- Measurement Range: 10-9999 RPM
- Measurement Accuracy: ± 0.1%
- Display: 0.56-inch Nixie tube for clear visibility
- Shell Material: Constructed from ABS plastic for lightweight durability
- Hall Switch Wire Length: 1 meter
- Panel Opening Dimensions: 76mm x 39.5mm
- Installation Method: Embedded design for a sleek integration
🔍 Installation Guidelines:
💍 To ensure optimal functionality, please note the following during installation:
- When installing the magnet, ensure correct polarity; if no speed display appears near the Hall switch, try repositioning the magnet.
- The effective distance between the Hall switch and the magnet should be kept under 5mm, with the N pole of the magnet being the active side.
- A bracket may be required to securely fix the Hall switch and motor, as holding the Hall switch directly is not suitable for speed measurement.
- Mount the magnet on a large-diameter rotating shaft, ensuring that it rotates concentrically and horizontally to avoid inaccuracies due to vibrations or excessive movement.
🔒 Included in the Package:
- Speedometer x 1
- Sensor x 1
- Magnet x 1
🛠️ Harness the power of precise speed measurement with this expertly crafted tachometer gauge, perfect for a range of industrial and mechanical applications.
